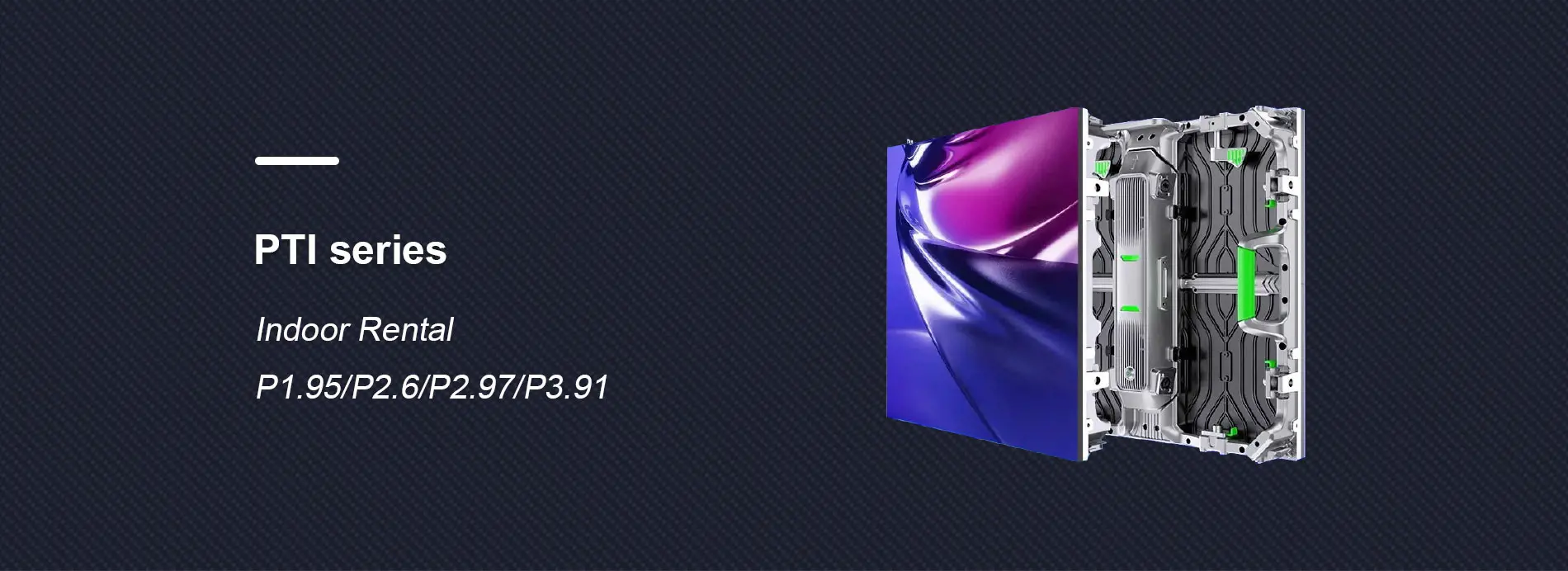

Zain Rental LED Display Screen PTI Series

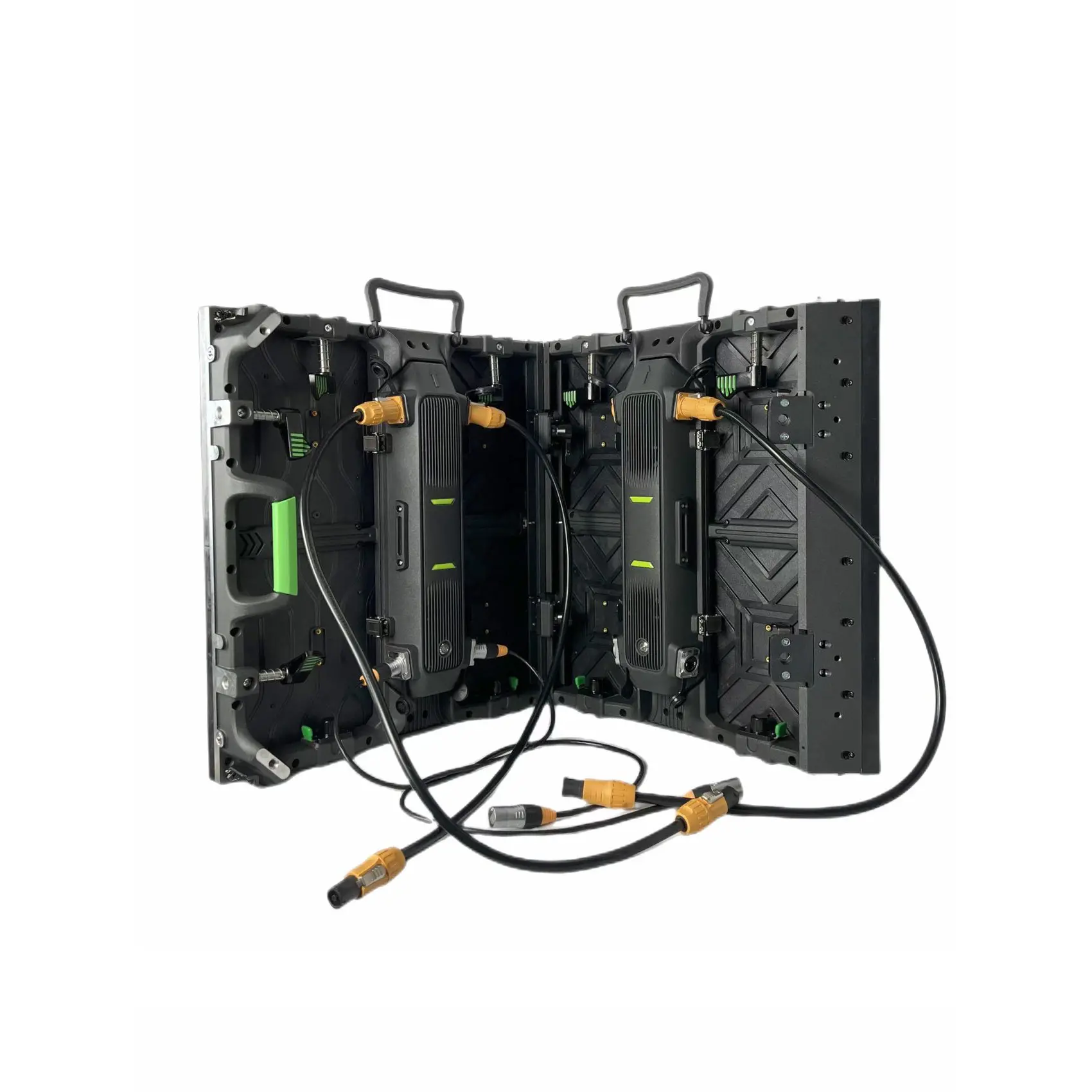

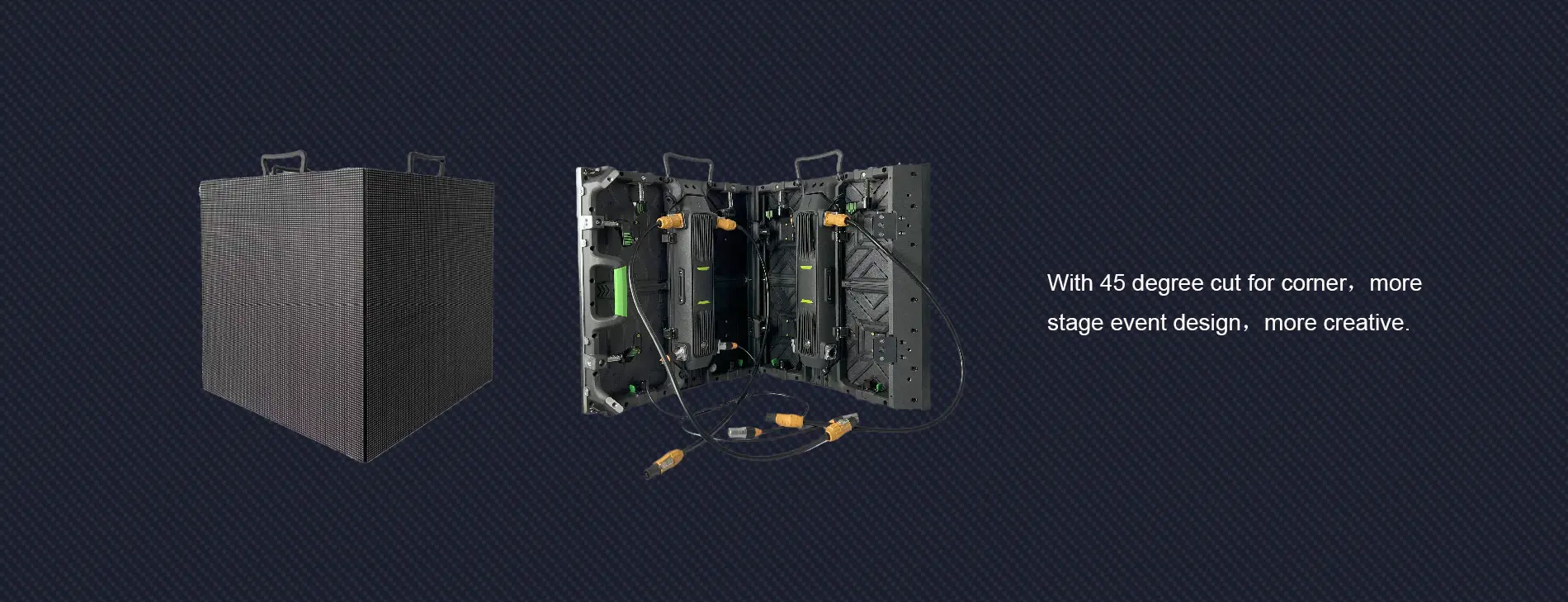

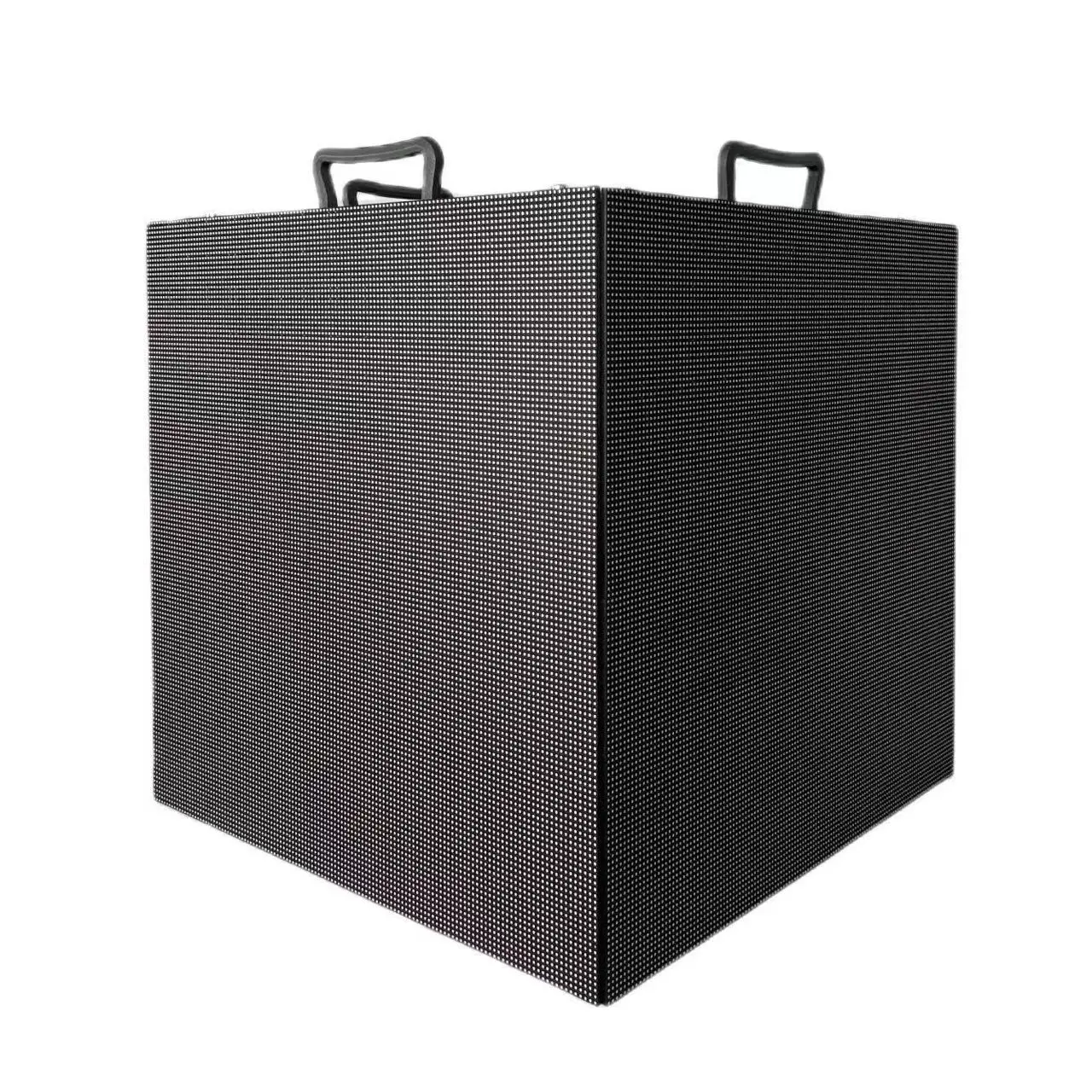

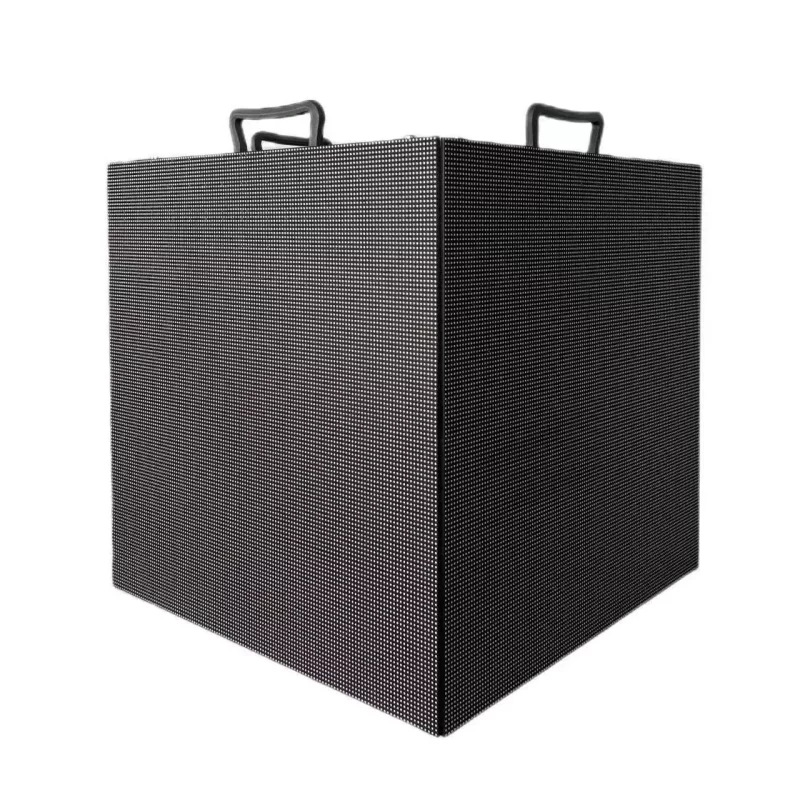

With the 45-degree CNC edges of the panel, the PTI series can be easy to form a 90-degree right angle. Minimum 4 panels to form a 0.5m x 0.5m x 4 sides of LED cube display.

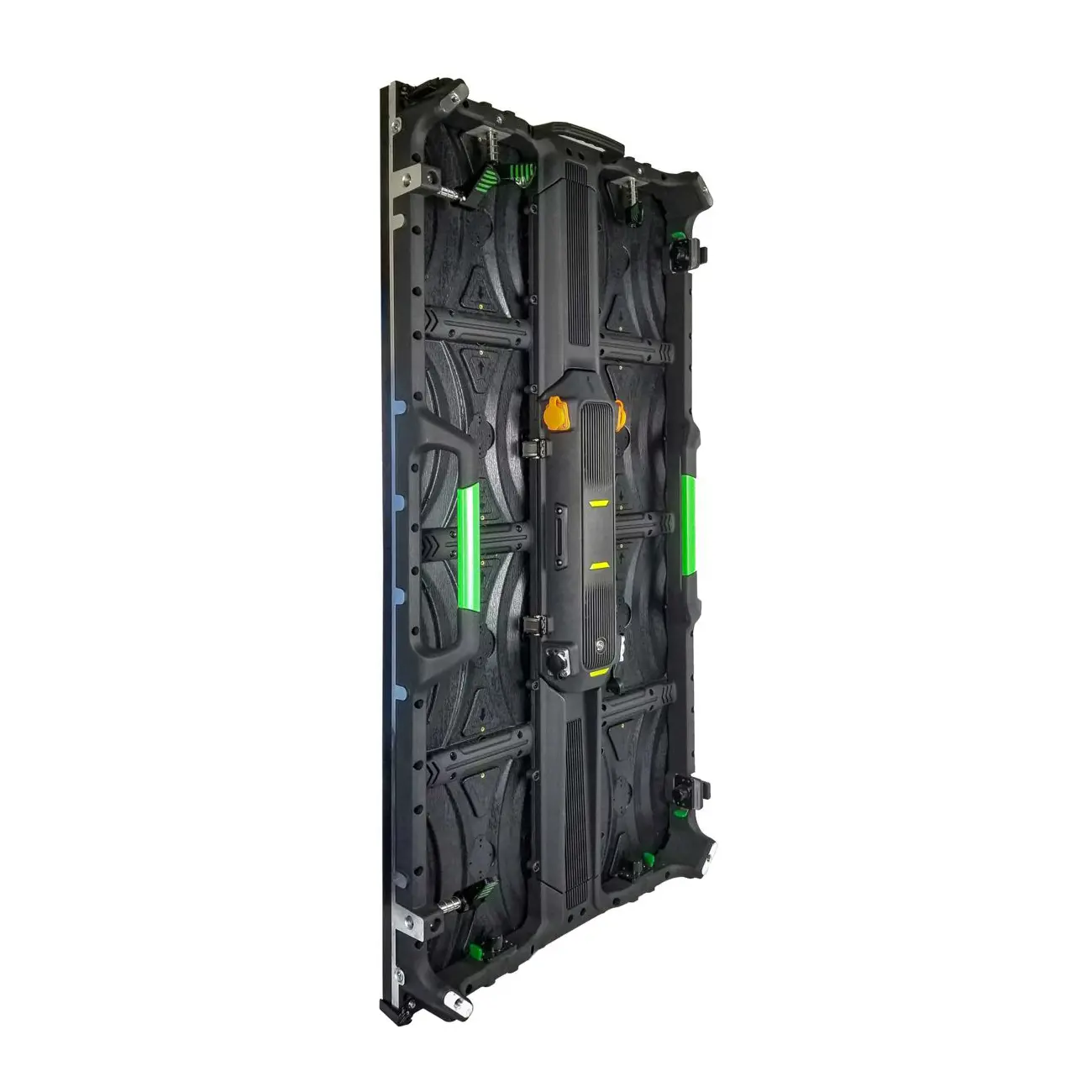

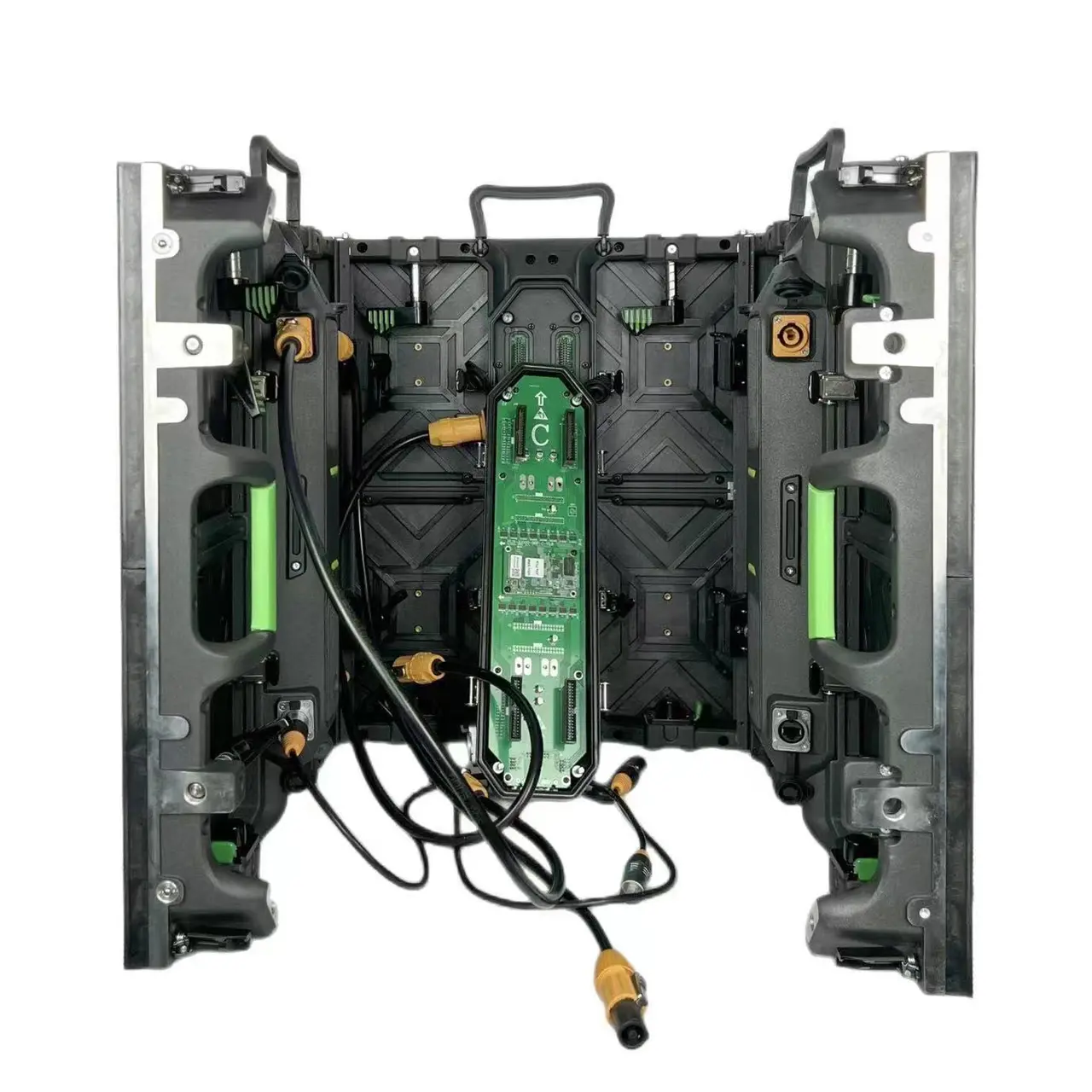

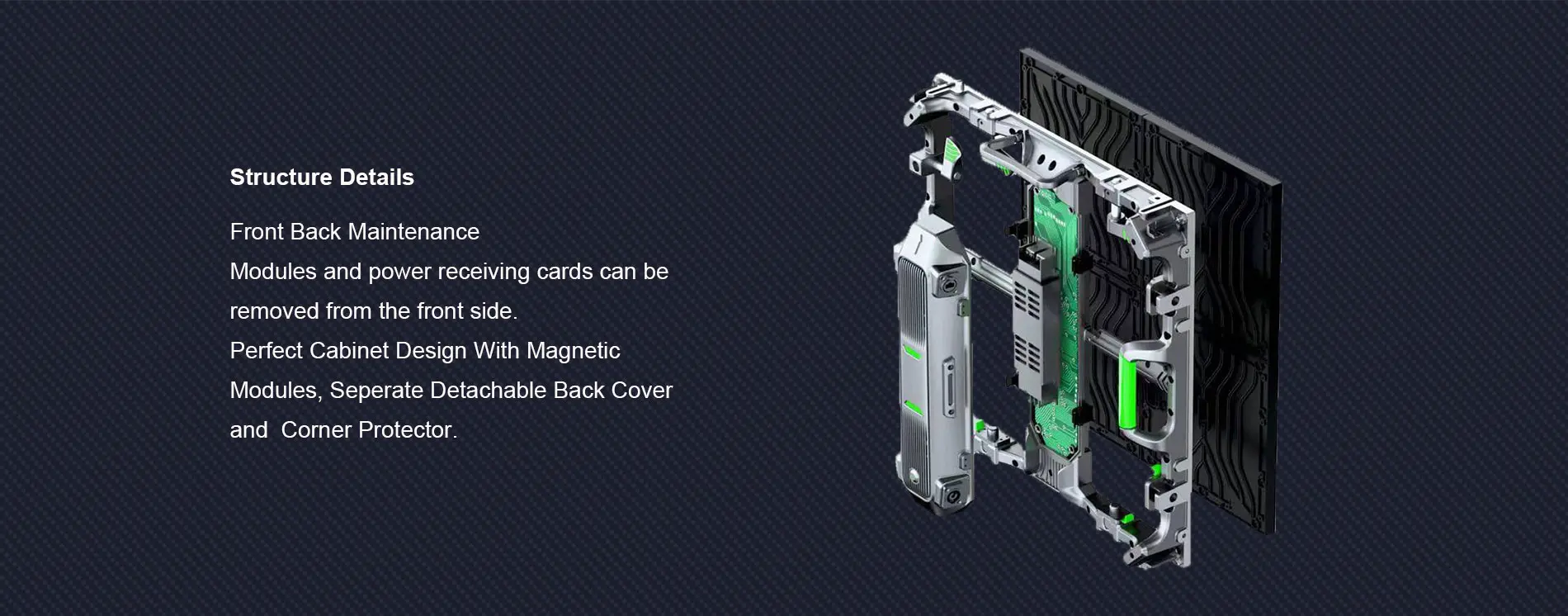

Zain PTI series Modular design of LED modules, power box, and panel frame, all of the parts and accessories would be replaced fast, and super easy for set up and make the installation.
Zain PTI series support mix-match use, it has 2 types of cabinets, one is a 500x500mm panel and another one is 500*1000mm could be mix-match used by up and down, left and right directions, to make the x*0.5 height size, more flexible in sizes and shapes, no need change any data after putting horizontally.

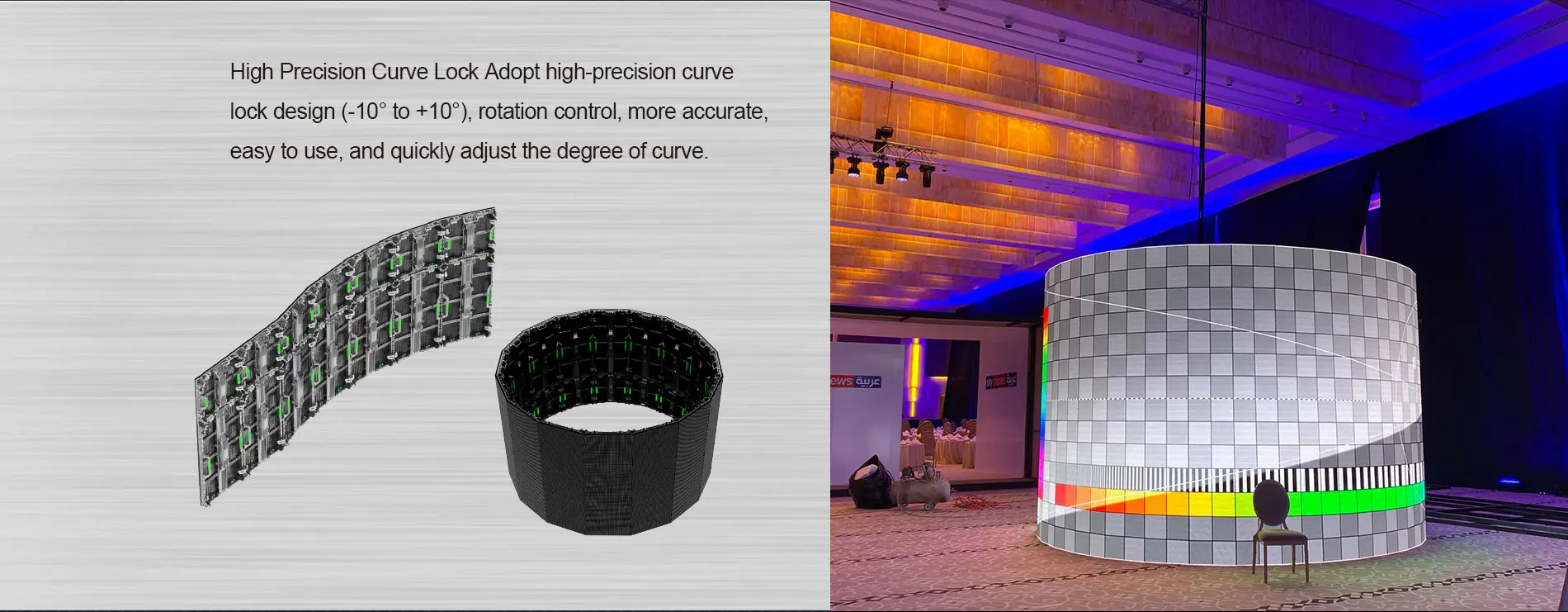

For the stage design of the performance stage, the PTI series event LED screen can be constructed according to the diversified stage shapes. The 14-16-bit gray scales, 3840 refreshes, es and the option to make curved as well as straight LED display walls.
Support hanging & ground stacking installation by specialized multi-type aluminum beam， and customized stacking equipment to fit any size for the ground installation. Half-meter / 1-meter length iron/aluminum hanging bars are available.
Control system, we use Novastar. Synchronous control is mostly by PC and video processor, asynchronously controlled by 4G/WIFI cloud control.
If you have any inquiries for the PTI series, send us email info@zainled.com, thanks so much.
| Zain Rental LED Display Screen PTI Series Parameter | ||||
| Product Pixel Pitch | P1.95 | P2.6 | P2.97 | P3.91 |
| Configuration | 1R1G1B (Full Color） | |||
| Lamp Bead Package | SMD1515 | SMD1515 | SMD1515 | SMD2020 |
| Pixel density (dots/m2) | 262144 | 147456 | 112896 | 65536 |
| Modules Size (mm) | 250×250 （Wx H ） | |||
| Cabinet Size(mm) | 500*500 | 500*500/ 500*1000 | 500*500/ 500*1000 | 500*500/ 500*1000 |
| Modules Resolution (250*250mm） | 256×256 | 192×192/ 192×384 | 168×168/ 168×336 | 128×128 / 128x 256 |
| Best Viewing Distance (Meter) | ≥1.9 | ≥2.6 | ≥2.9 | ≥3.9 |
| Max power consumption (w/m2) | 600 | 600 | 750 | 600 |
| Average power consumption (w/m2) | 200 | 200 | 200 | 200 |
| Refresh Rate (Hz) | 3840 | |||
| Frame change frequency (Hz) | 50&60 | |||
| Gray Level (bit) | 14-16 bit | |||

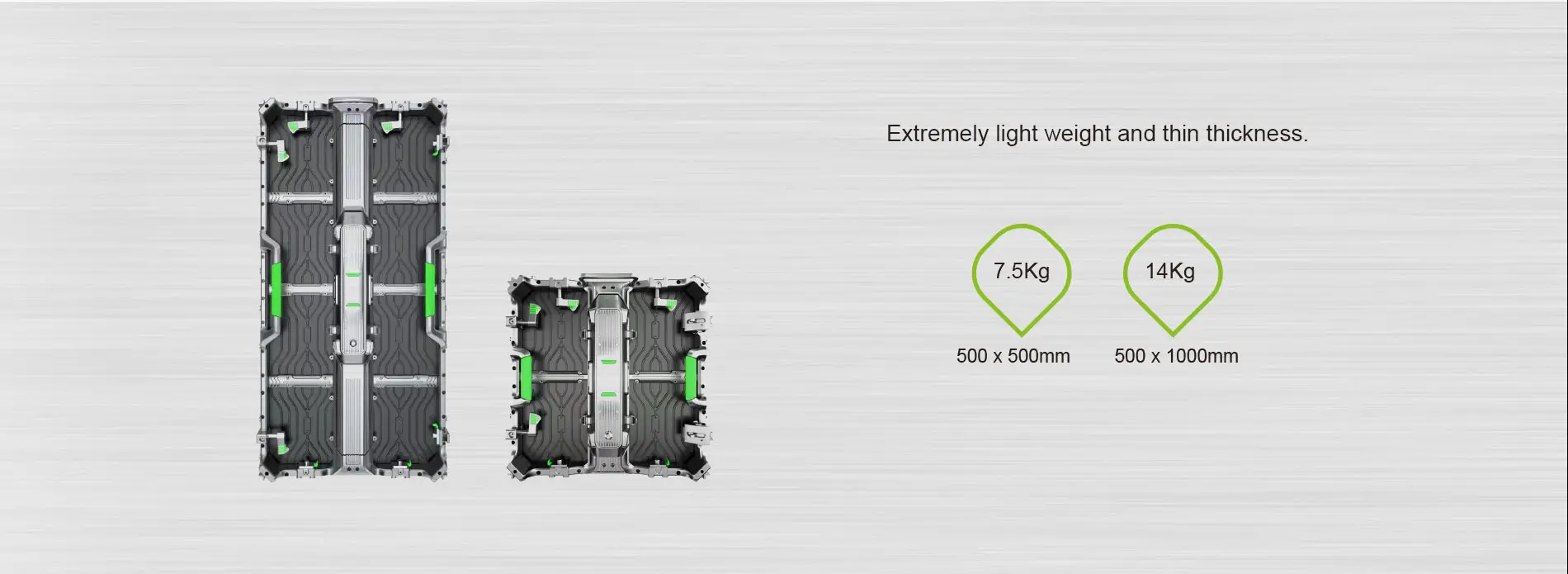

| Cabinet Weight Unit 500*500mm | 7.5KG / Cabinet | |||
| Cabinet Weight Unit 500*1000mm | 14KG / Cabinet | |||
| Cabinet material | Die-casting Aluminum | |||
| Cabinet flatness (mm) | ≤ 0.1 | |||
| Protection class | IP30 | |||
| Installation/maintenance | Modules Front /Back Maintenance | |||
| Max Brightness (nits) | 1000 | |||
| Color temperature (K) | 3000—10000 Adjustable | |||
| Brightness uniformity | ≥98% | |||
| Control Method | Synchronize | |||
| Horizontal/Vertical Viewing Angle | ≥160°/≥160° | |||
| Contrast rate | 4000:1 | |||
| Module Array | 2*2/ 2*4 pcs | |||
| Driving Device | Constant Current | |||
| Working input voltage AC (V) | 110—220 | |||
| Typical Lifetime (hrs) Operating | 100000 | |||
| Data Transfer Method | RJ45 | |||
| Working temperature range (℃) | -20—60 | |||
| Storage temperature range (℃) | -20—60 | |||
| Operating Humidity Range (RH) | 20—90% | |||
| Storage Humidity Range (RH) | 20—90% | |||
