Zain Transparent Window LED Screen Panel OC Series
Zain OC Series thickness is only 66mm, super lightweight Max 19KG/sqm, energy-saving, less 40% power consumption than normal outdoor led screen. High transparency max of 68% is better for heat dissipation performance.

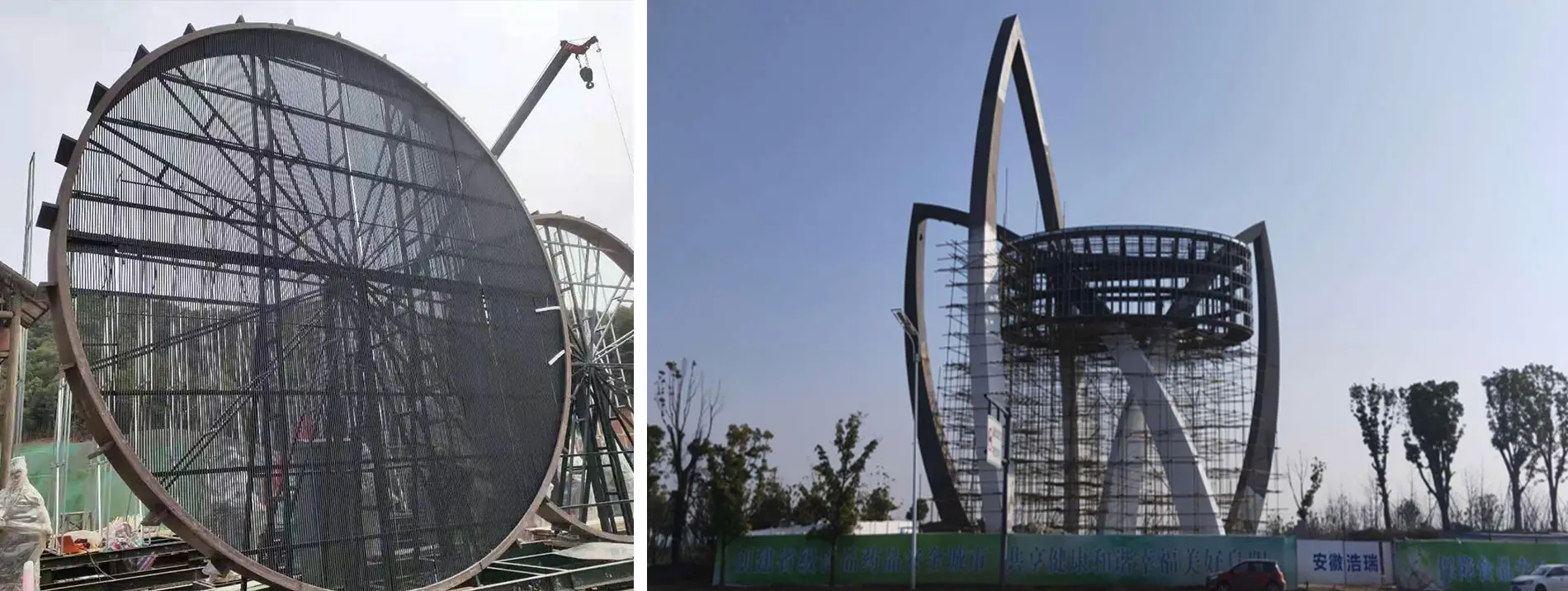

Outdoor curtain mesh giant led display is getting popular as without air conditioner, sand proof, and wind resistance. It has been widely applied in Jeddah, Saudi Arabia, Russia, etc.

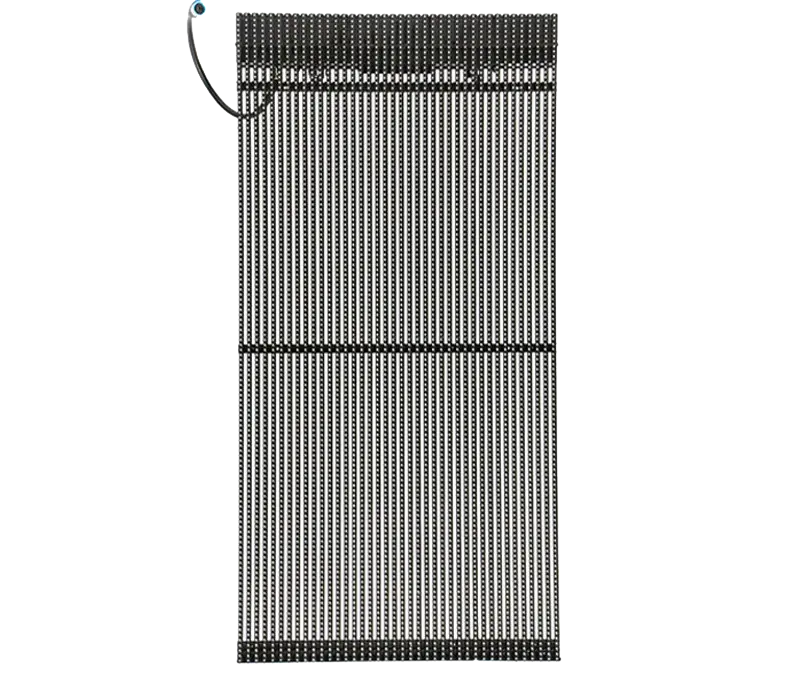

Curtain mesh LED display OC series is a media facade LED screen with high transmittance. Designed to make architecture more cutting-edge and attractive, the OC series is integrated with the feature of the LED curtain.
With higher brightness of up to 10000nits and greater transparency, this display tends to be used as over-dimensional, animated, illuminated advertising media LED screens.

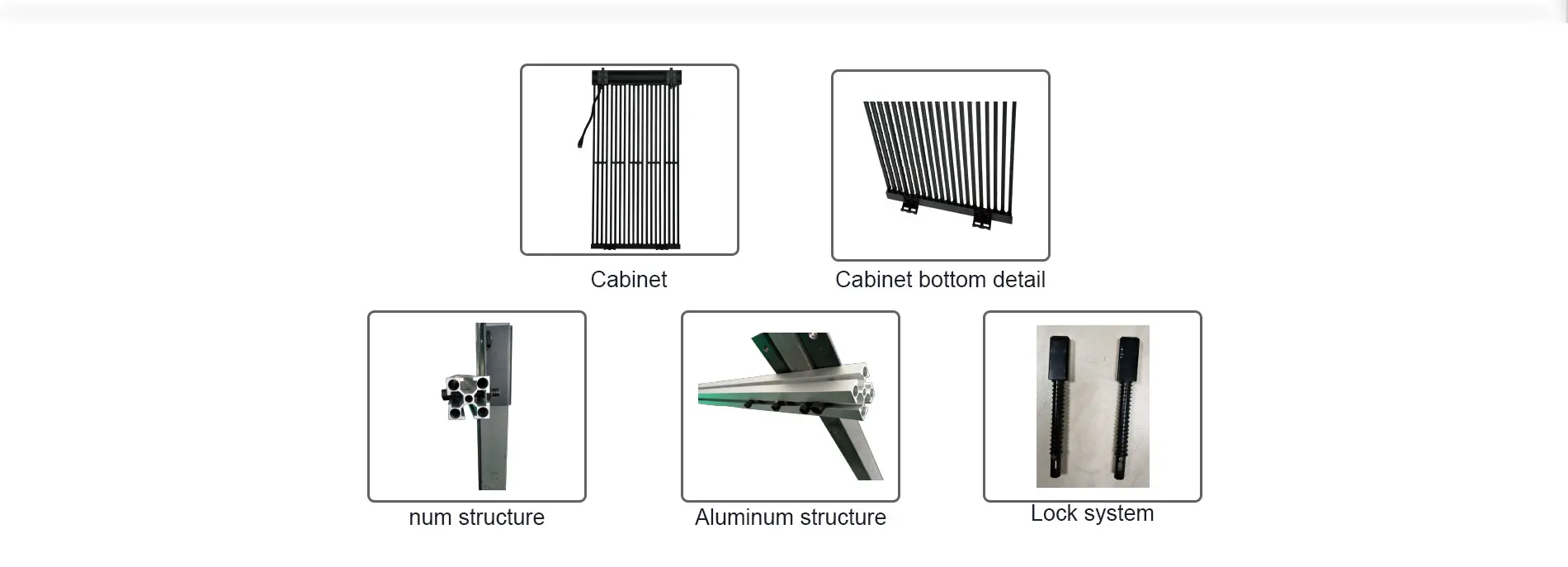

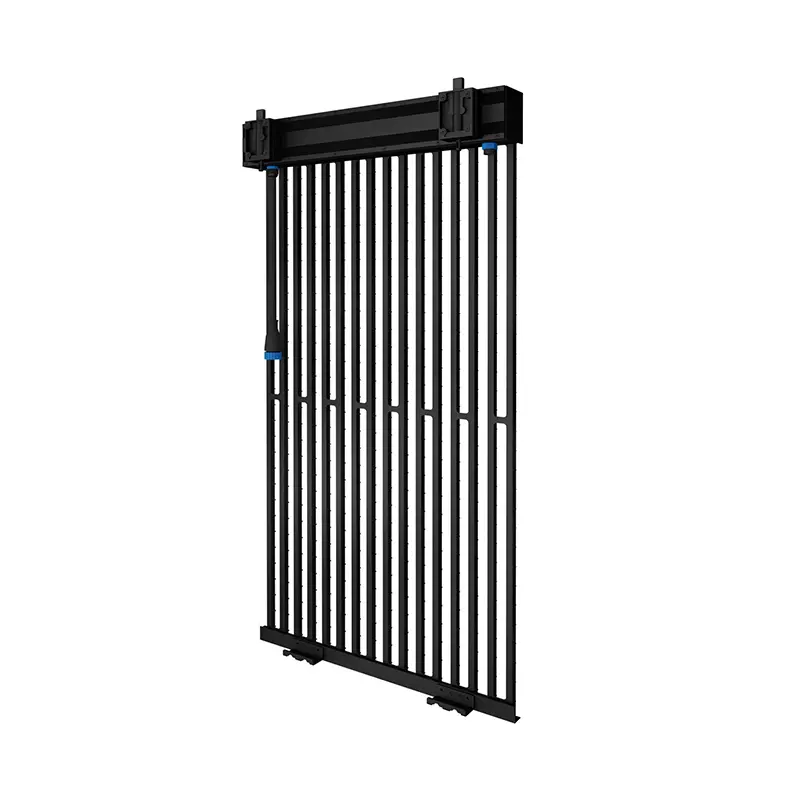

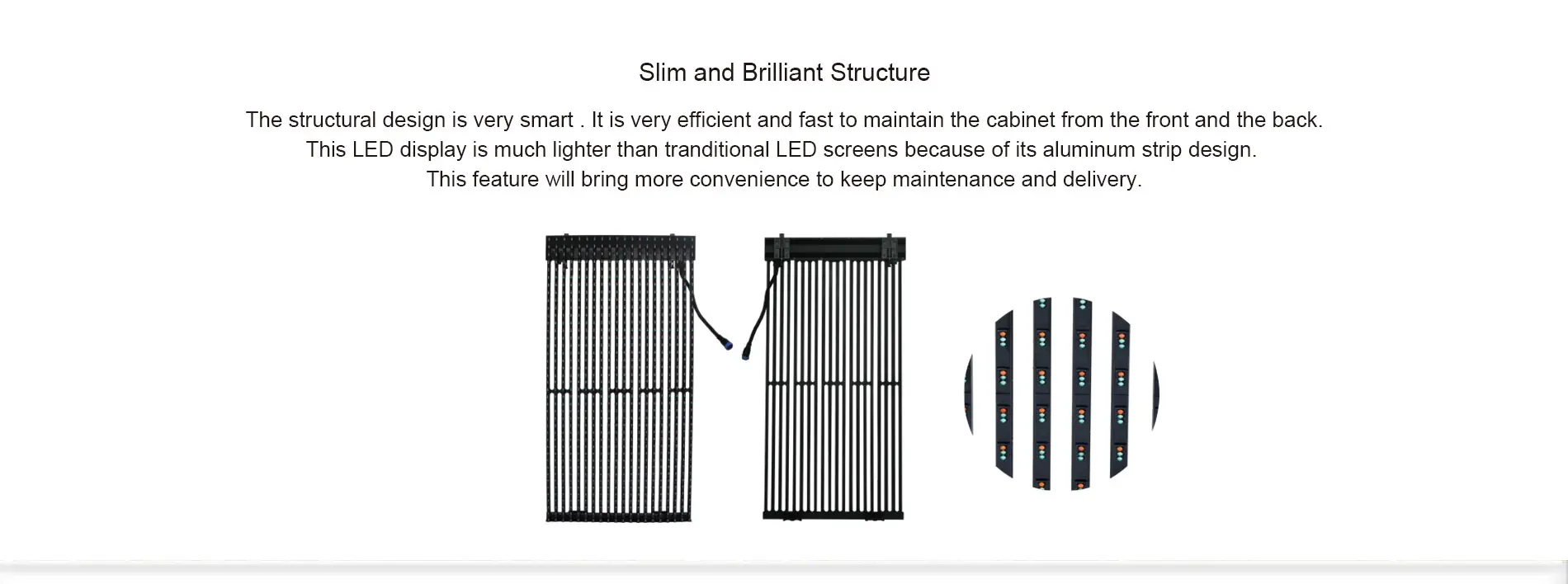

OC Series aluminum strip design standard cabinet size is W500*H1000, but other cabinets size and the whole of the led display unregular shape would be customized by us.
Control system, we use Novastar. Synchronous control is mostly by PC and video processor, asynchronously controlled by 4G/WIFI cloud control.
If you have any inquiries for the OC series, send us an email info@zainled.com, thanks so much.
Â
| OC Series Data Sheet | ||||
| Product Technical Specification | OC Series P20 | OC Series P25 | OC Series P31.25 | OC Series P50 |
| Product Pixel Pitch | P20-20mm( H*V) | P25-25mm( H*V) | P31.25-31.25 mm (H*V) | P15.6-31.25mm(H*V) |
| LED Configuration | DIP346 | SMD3535 | SMD3535 | DIP346 |

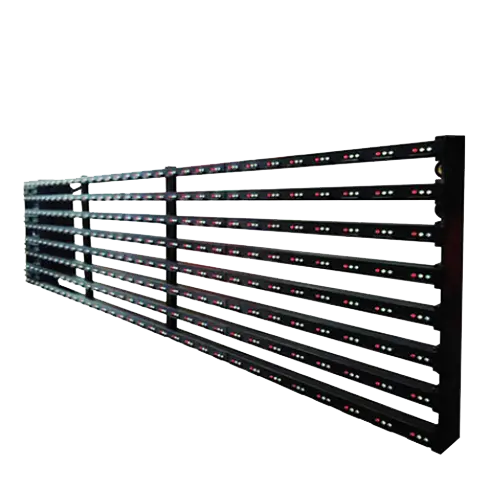

| Modules size (mm) | 500*125 | 500*125 | 500*250 | 500*250 |
| Modules resolution | 48*12 | 40*10 | 32*16 | 32*8 |
| Cabinet size | 500*1000*75mm | 1000*1000*75mm | 1000*1000*75mm | 1000*1000*75mm |
| Pixel density (dots/m2) | 2,500 | 6,400 | 4,096 | 2,048 |
| Cabinet weight (KG) | 13 | 19 | 19 | 19 |
| Transparency rate | 50% | 35% | 60% | 50% |
| Refresh Rate (Hz) | 3840 | 3840 | 3840 | 3840 |
| Brightness (nits ) | 8000 | 6000/8000 | 6000/8000 | 6000/8000 |
| Maximum power consumption | 400W/sqm | 700W/sqm | 700W/sqm | 700W/sqm |
| Average power consumption | 150W/sqm | 266W/sqm | 266W/sqm | 266W/sqm |
| Frame change frequency (Hz) | 50&60 | |||
| Gray Level (bit) | 14-16bit | |||
| Cabinet material | Aluminum Profile | |||
| Protection class | IP65 | |||
| Installation/maintenance | Â Back/Â Front Access Maintenance | |||
| Life Span | 100,000 hours | |||
