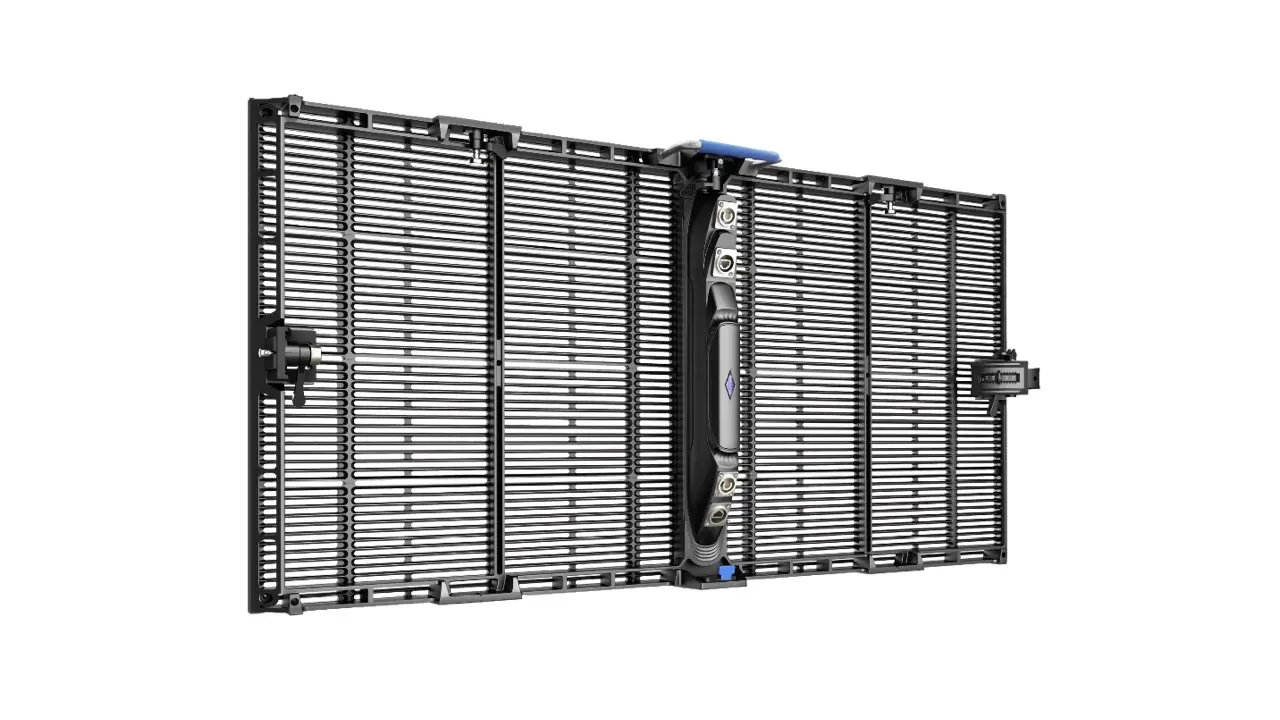

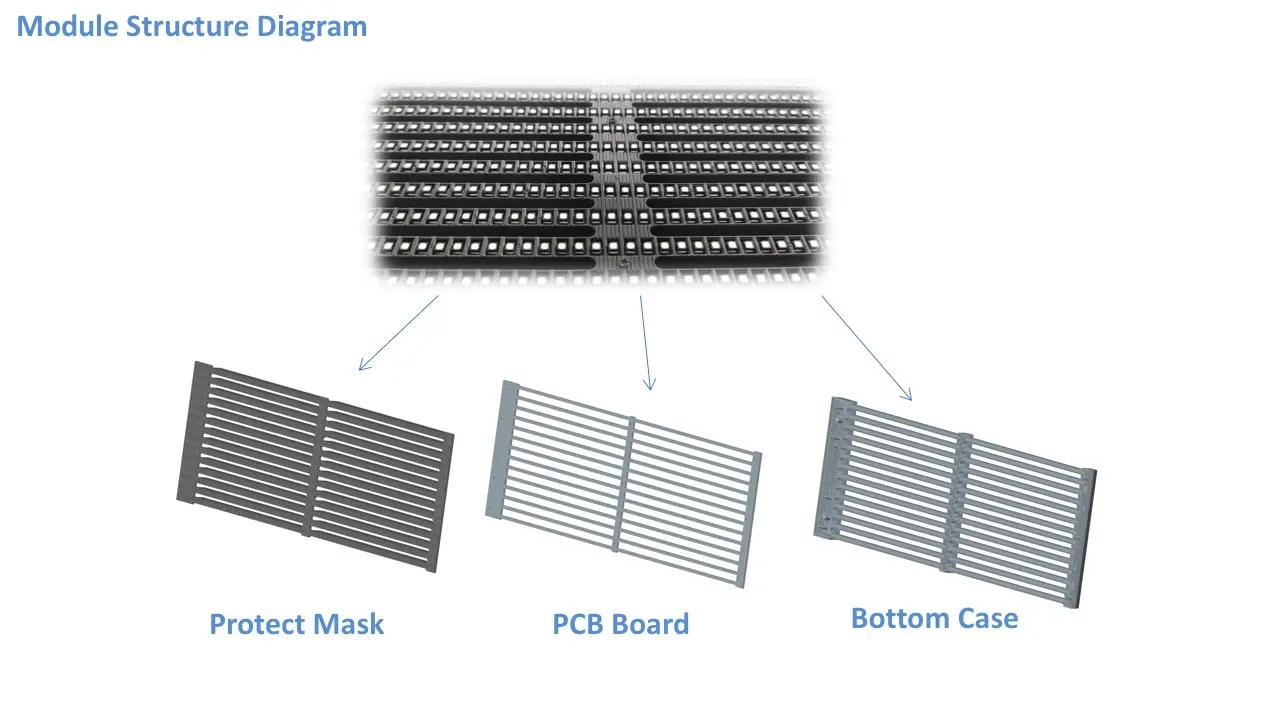

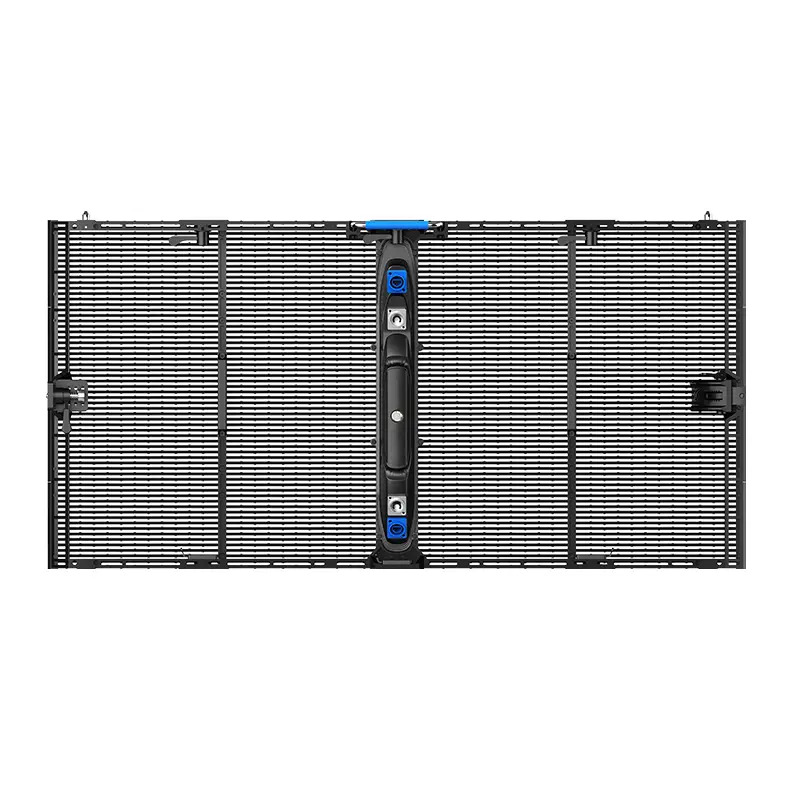

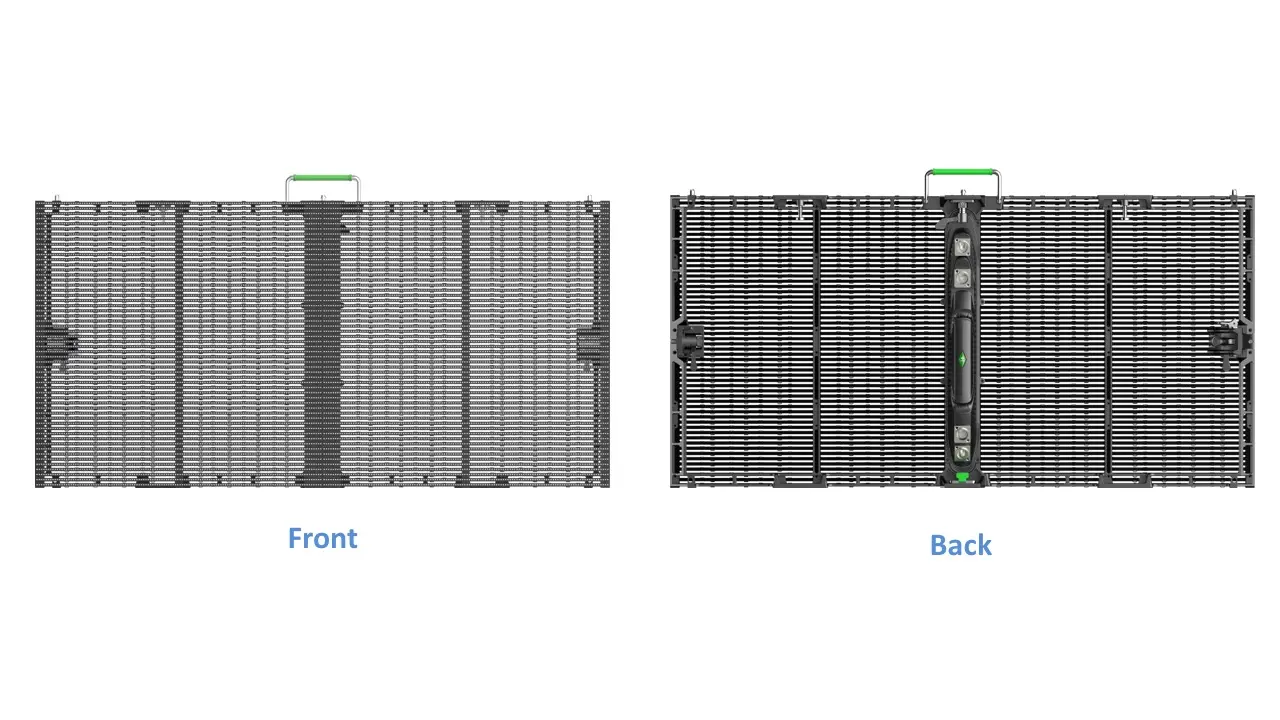

The Air series transparent rental led screen for the stage with a transparency of 40% (including Protect Mask), and this LED panel offers excellent performance in outdoor environments through its high brightness and high refresh rate.

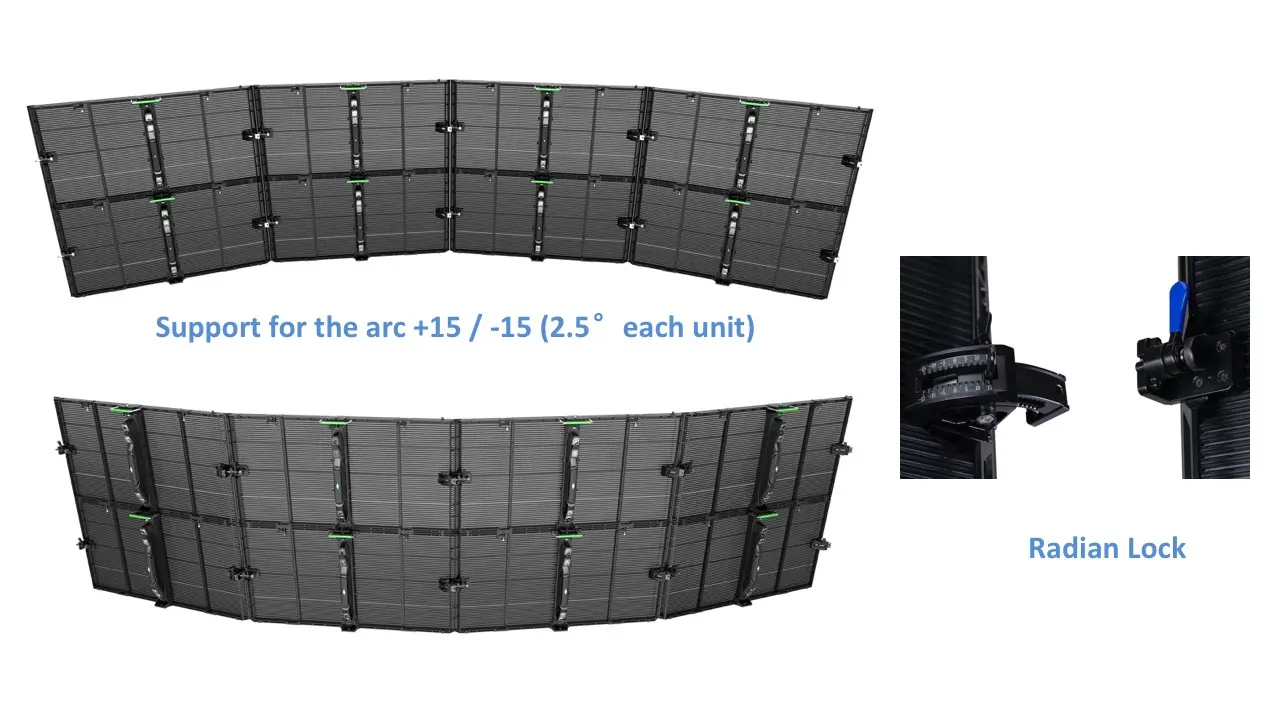

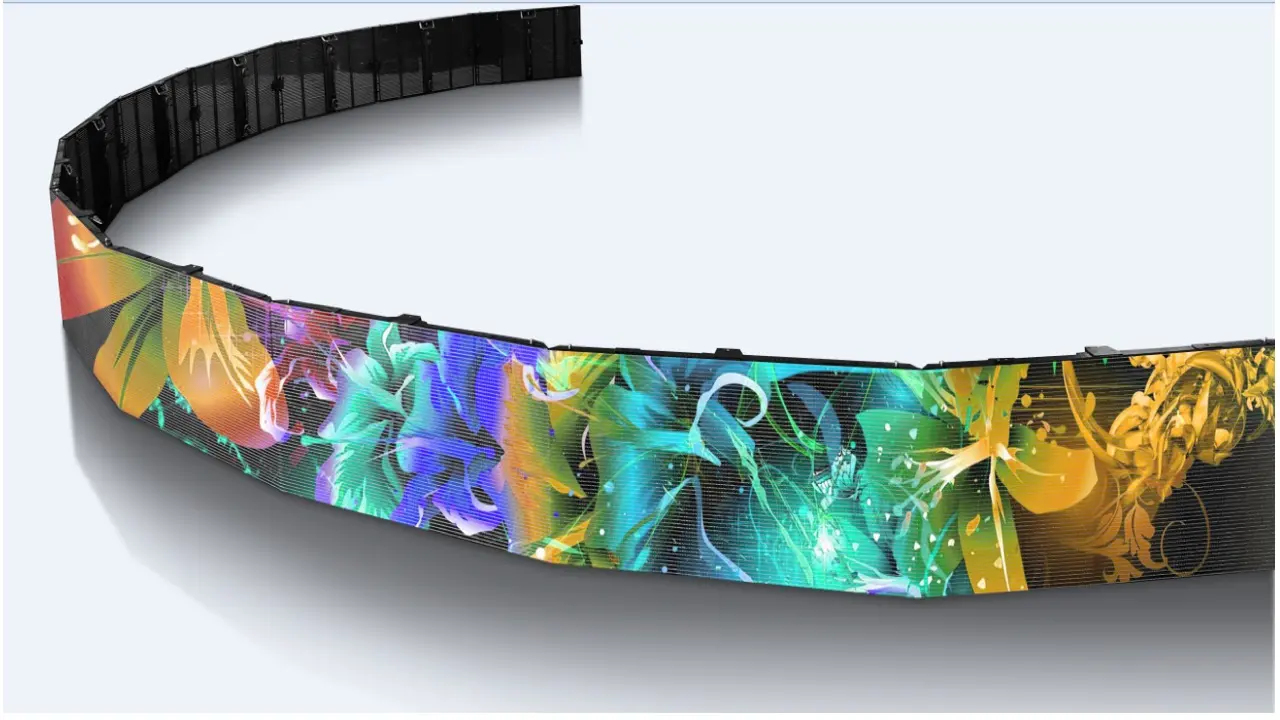

It will attract the audience’s attention and display unforgettable experiences using its wonderful video performance. The 14-16-bit gray scales, 3840 refreshes and the option to make curved as well as straight LED display walls.
For the stage design of the performance stage, the event LED transparent screen can be constructed according to the diversified stage shapes. The LED screen body itself is transparent and light, resulting in a strong perspective effect and lengthening the focal length of the entire interface.

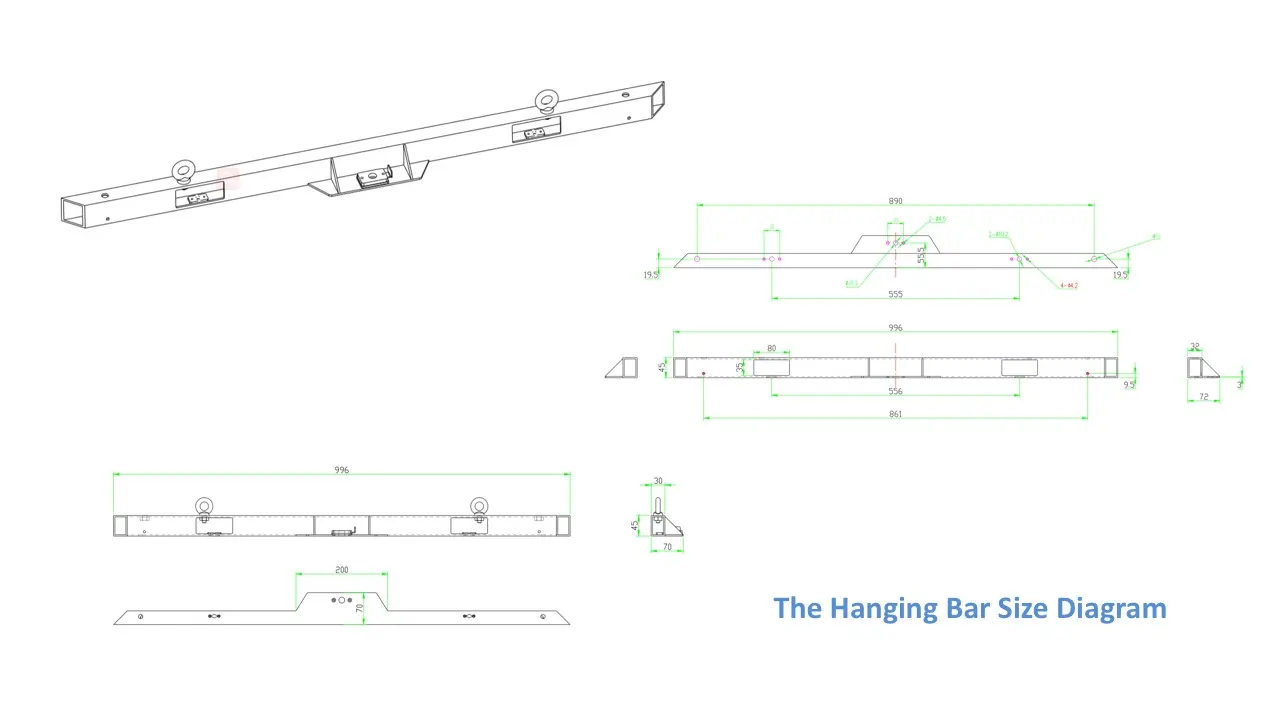

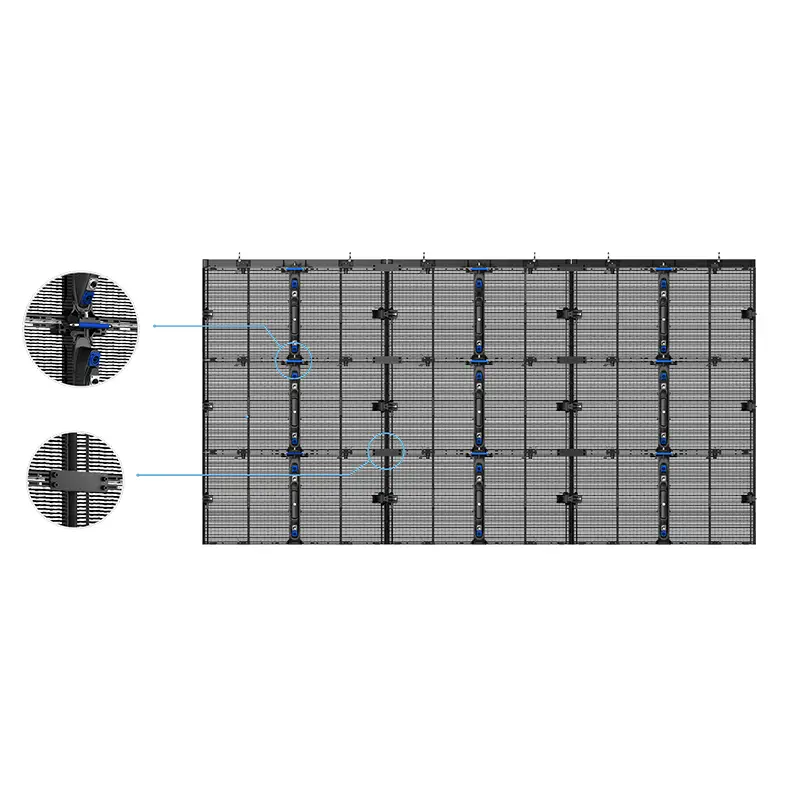

Support hanging & ground stacking installation with specialized multi-type aluminum beams， and customized stacking equipment to fit any size for the ground installation. Half-meter / 1-meter length iron/aluminum hanging bars are available.

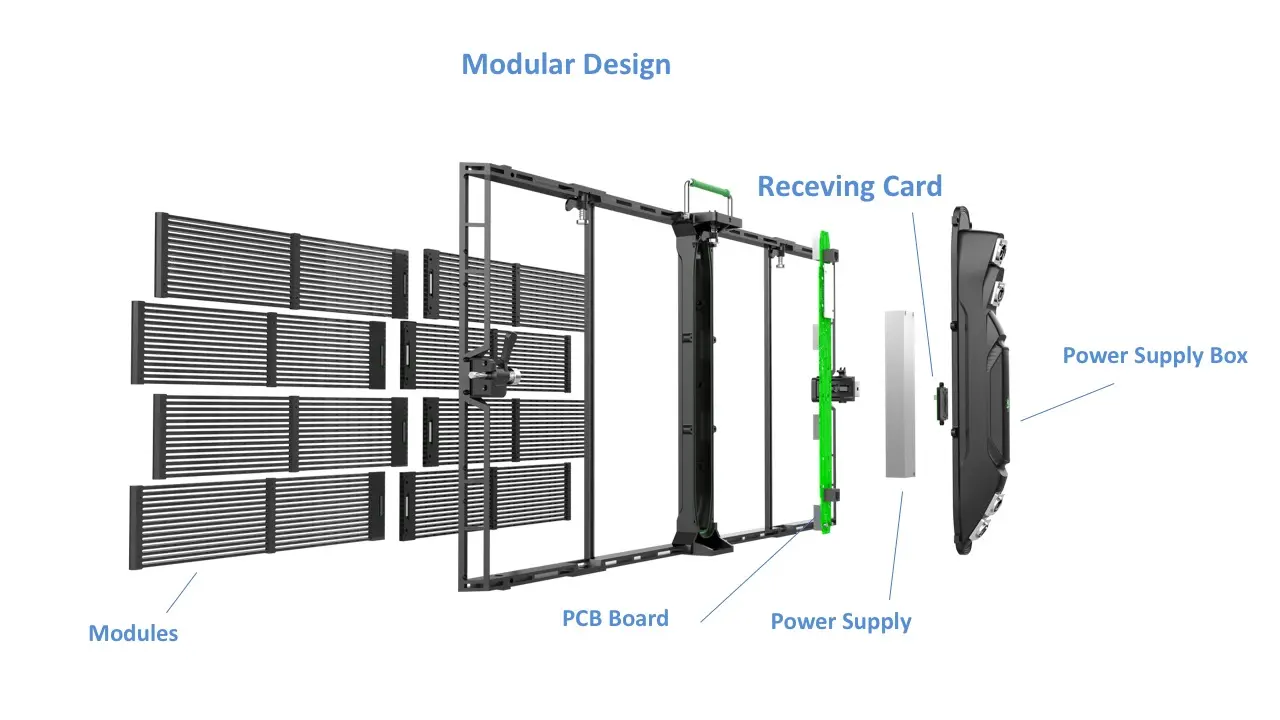

Control system, we use Novastar. Synchronous control is mostly by PC and video processor, asynchronously controlled by 4G/WIFI cloud control.
If you have any inquiries for the Air series, send us email info@zainled.com, thanks so much.
| Zain Rental LED Display Panel Air Series Parameter | ||
| Product Pixel Pitch | P3.9-7.8 (H3.9 V7.8) | P3.9-8.9 (H3.9 V8.9) |
| Configuration | 1R1G1B (Full Color） | |
| Lamp Bead Package | SMD 1921 | SMD1921 |
| Pixel density (dots/m2) | 32768 | 28672 |

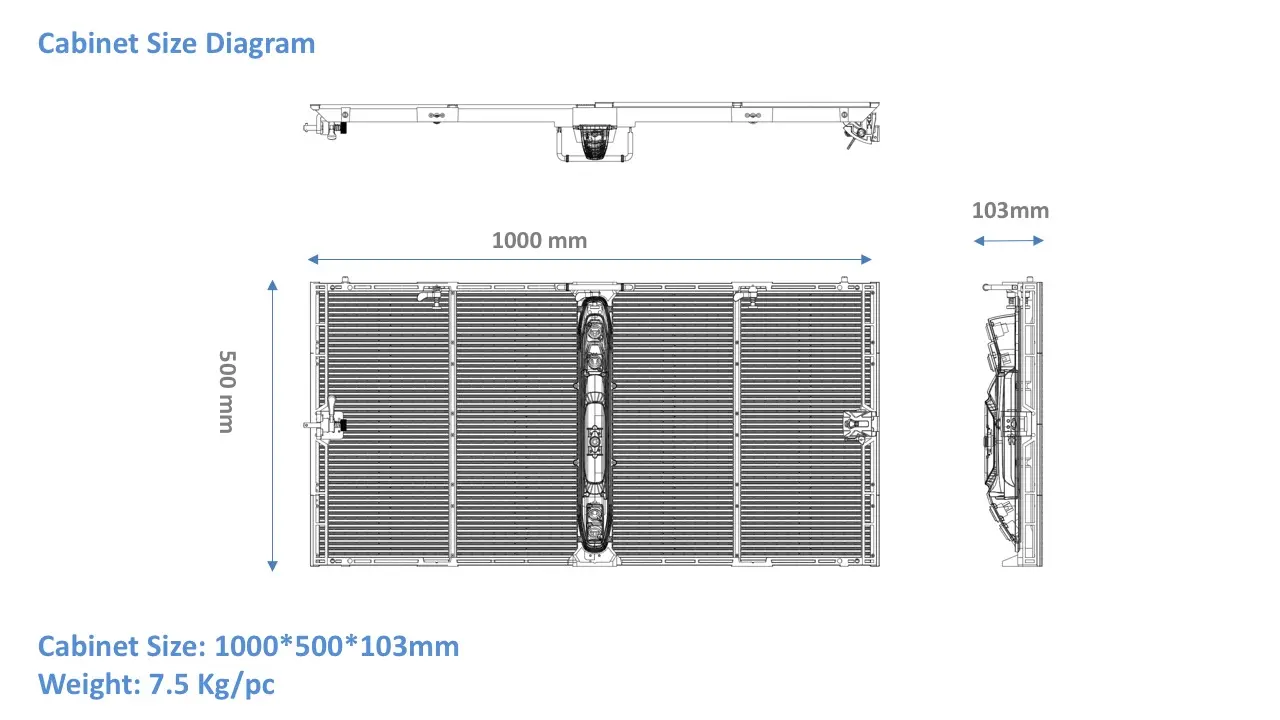

| Cabinet Size(mm) | 1000*500 | |
| Pixel Per Panel | 256×64 | 256*56 |
| Max power consumption (w/m2) | 800 | 800 |
| Average power consumption (w/m2) | 260 | 260 |
| Refresh Rate (Hz) | 3840 | |
| Frame change frequency (Hz) | 50&60 | |
| Gray Level (bit) | 14-16 bit | |
| Cabinet Weight | 7 KG / Cabinet | |
| Cabinet material | Die-casting Aluminum | |
| Cabinet flatness (mm) | ≤ 0.1 | |

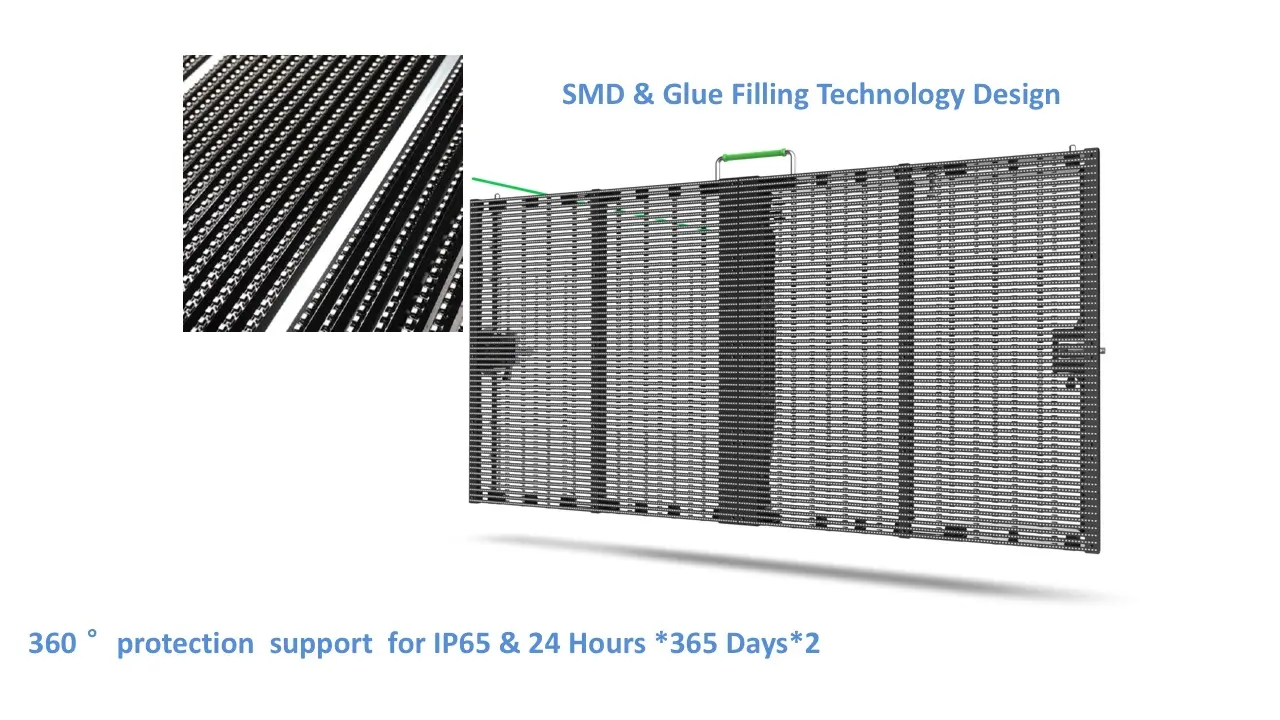

| Protection class | IP65 | |
| Installation/maintenance | Back Maintenance | |
| Max Brightness (nits) | 5000 | |
| Color temperature (K) | 3000—10000 Adjustable | |
| Brightness uniformity | ≥98% | |
| Control Method | Synchronize | |
| Horizontal/Vertical Viewing Angle | ≥140°/≥140° | |
| Contrast rate | 4000:1 | |
| Module Array | 2*2 | |
| Driving Device | Constant Current | |
| Working input voltage AC (V) | 110—220 | |
| Typical Lifetime (hrs) Operating | 100000 | |
| Data Transfer Method | RJ45 | |
| Working temperature range (℃) | -20—60 | |
| Storage temperature range (℃) | -20—60 | |
| Operating Humidity Range (RH) | 20—90% | |
| Storage Humidity Range (RH) | 20—90% | |
