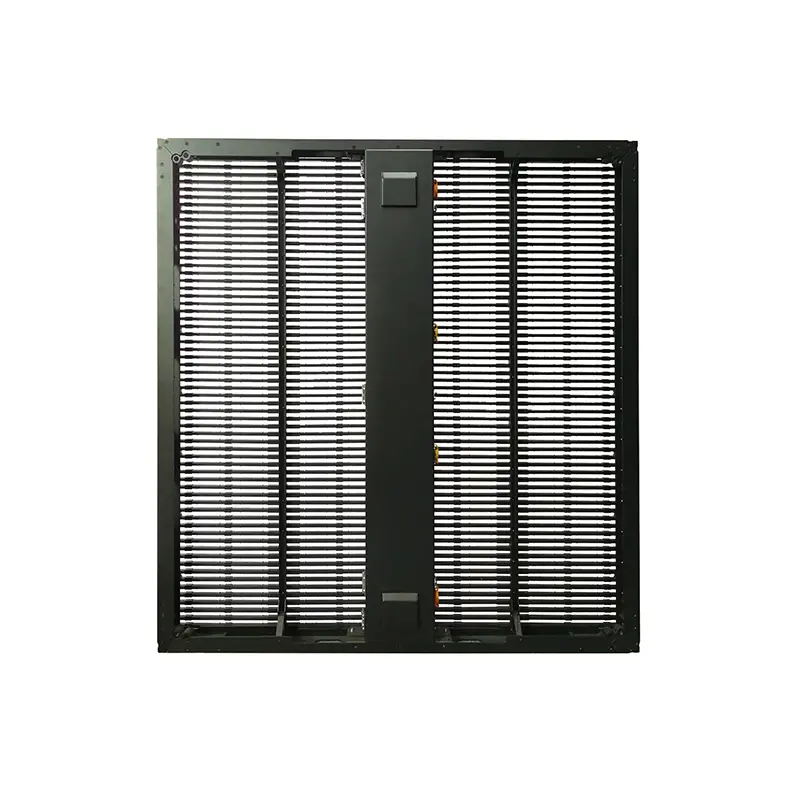

Zain Transparent Window LED Display Screen OT Series

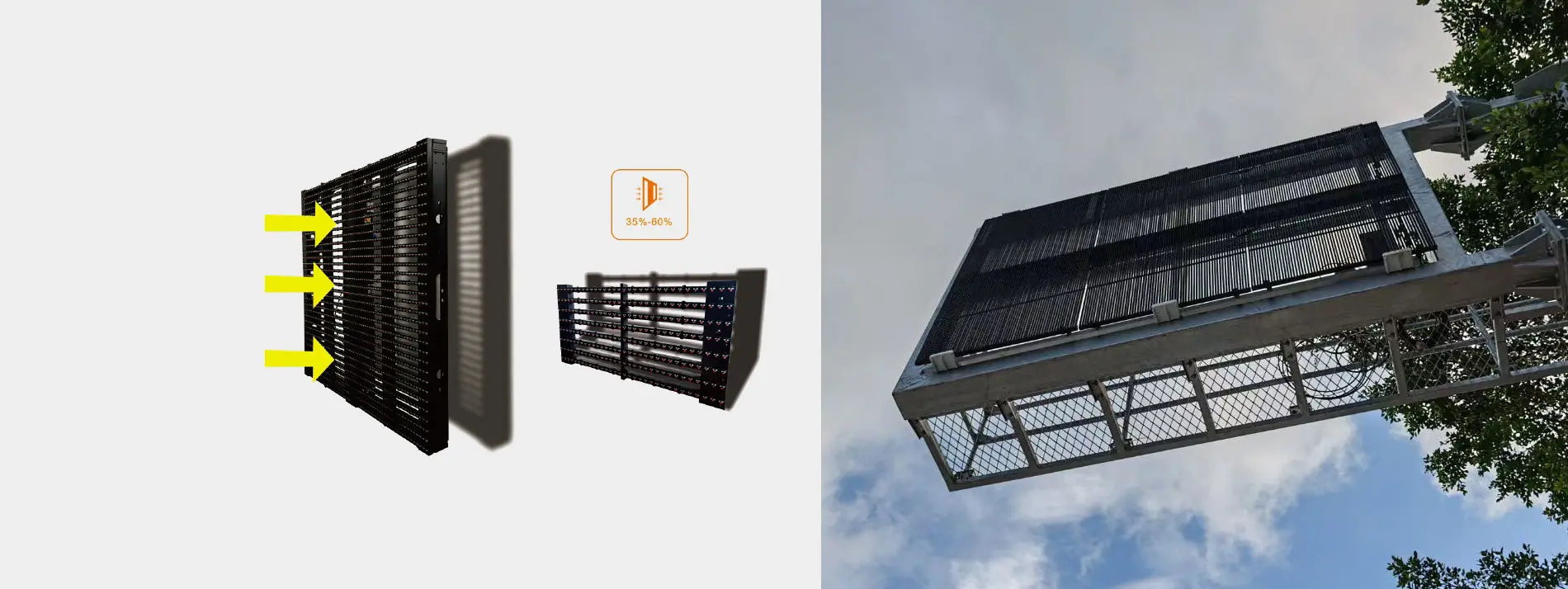

Zain OT Series thickness is only 75mm. super lightweight only 19KG/sqm. high transparency max of 60% is better for heat dissipation performance.
Outdoor transparent huge media facade led screen is getting popular in the middle east without an air conditioner. sand proof. sand wind resistance.

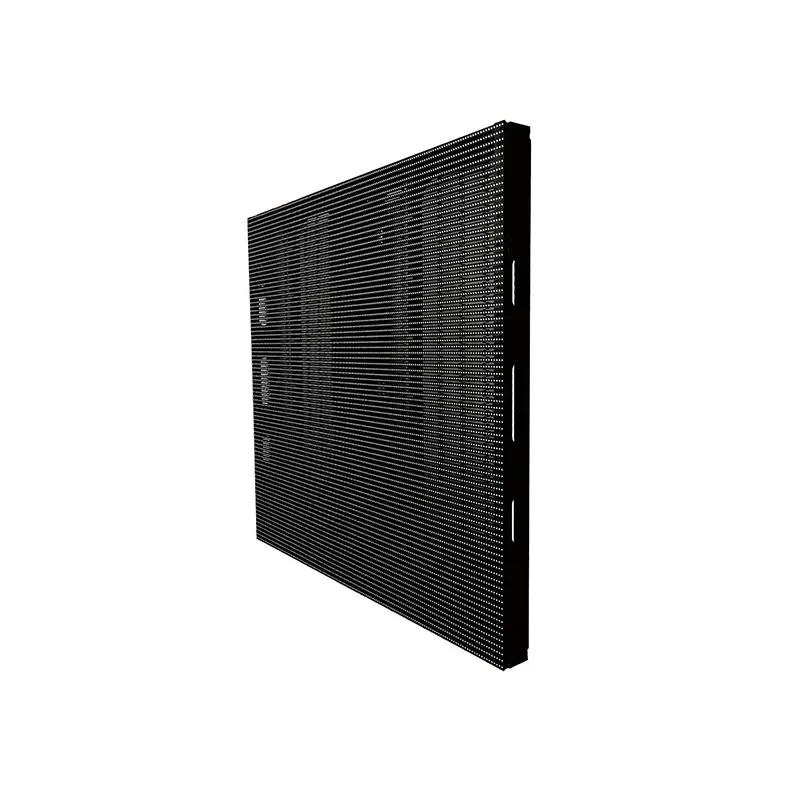

OT Series the best rate of outdoor huge screen cabinet size is 1 meter by 1 meter. For example. in the UK. traditional printing digital billboard 48 sheet is Dimensions 3 m x 6 m; 96 sheet is Dimensions 3 m x 12m.
Any installation and service engineers never confuse it from their minds.100% integer remember quickly and close to the location size. 1 unit cabinet equally 1 square meter.

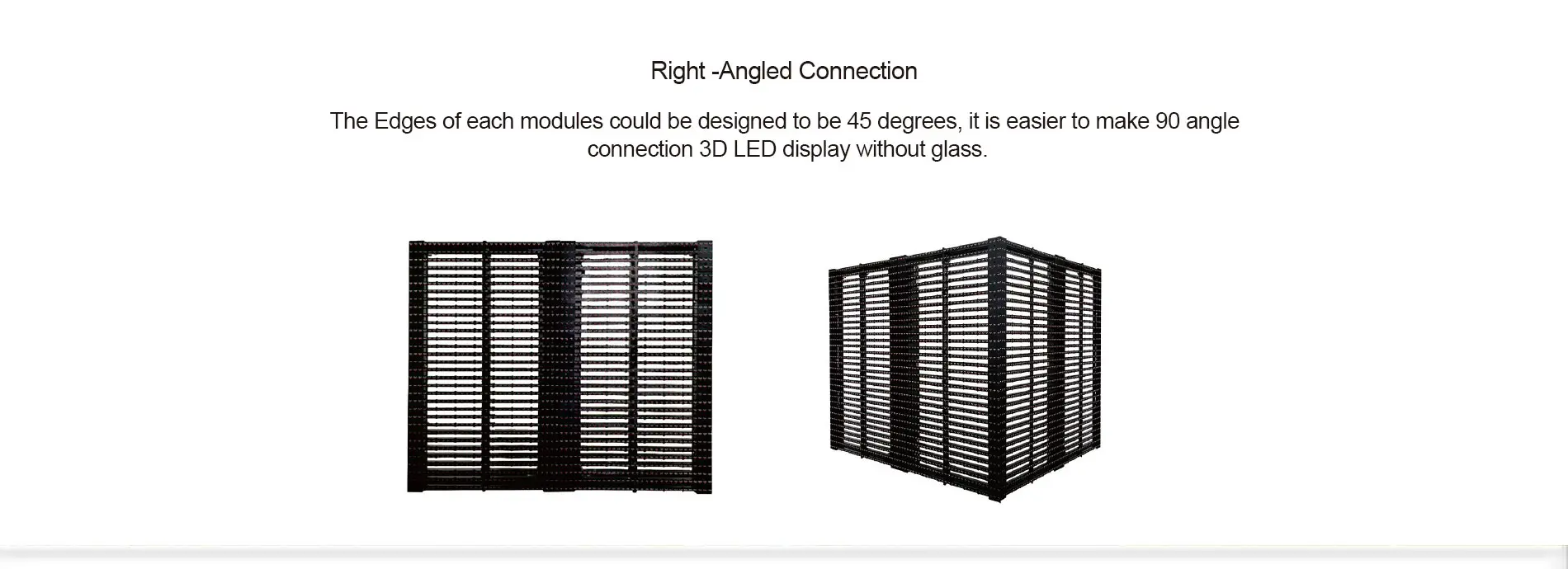

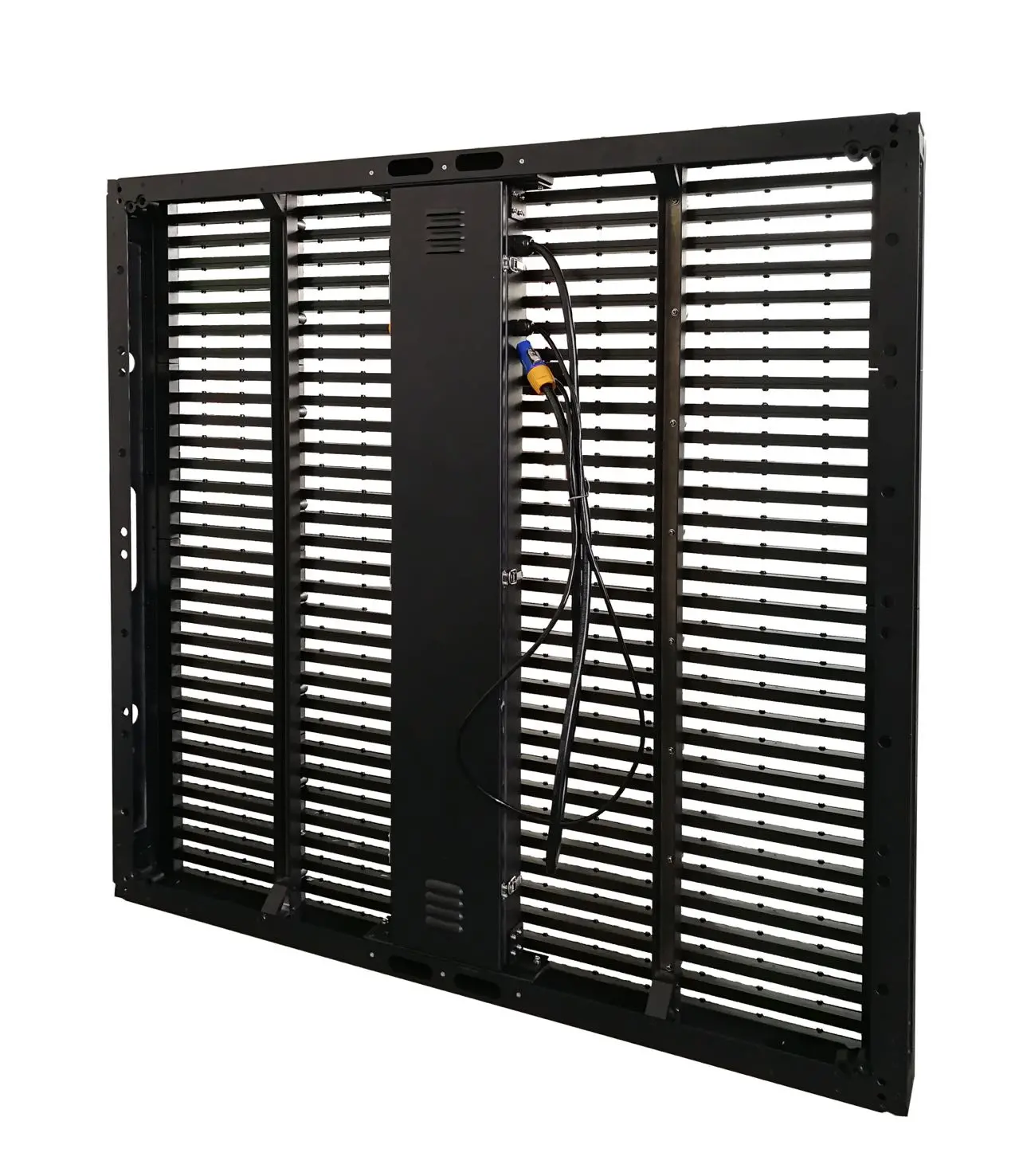

OT Series each module is designed to be 45 degrees. it is easier to make the right angle to a 90-degree naked-eye 3D screen without glasses. Full front maintenance access ensures no longer use of heavy steel frames for building protection.
Control system. we use Novastar. Synchronous control is mostly by PC and video processor. asynchronously controlled by 4G/WIFI cloud control.
If you have any inquiries for OT series. send us an email info@zainled.com. thanks so much.
| OT Series Data Sheet | |||||
| Product Technical Specification | OT Series 307 | OT Series 510 | OT Series 0612 | OT Series 0707 | OT Series 0715 |
| Product Pixel Pitch | P3.9-7.8mm ( H*V) | P5.2-10.4mm( H*V) | P6.2-12.5 mm (H*V) | P7.8mm | P7.8-15.6 mm (H*V) |
| LED Configuration | SMD1921 | SMD2727 | SMD3535 | SMD2727 | SMD3535 |
| Modules size (mm) | 500*125 | 500*125 | 500*125 | 500*125 | 500*250 |
| Modules resolution | 128*16 | 96*12 | 80*10 | 64*16 | 64*16 |
| Cabinet size | 1000*1000*75mm | 1000*1000*75mm | 1000*1000*75mm | 1000*1000*75mm | 1000*1000*75mm |
| Pixel density (dots/m2) | 32,768 | 18,432 | 12,800 | 16,384 | 8,192 |
| Cabinet weight (KG) | 19 | 19 | 19 | 19 | 19 |
| Transparency rate | 41% | 42% | 35% | 41% | 60% |
| Refresh Rate (Hz) | 3840 | 3840 | 3840 | 3840 | 3840 |
| Brightness (nits ) | 5500 | 6000/8000 | 6000/8000 | 6000/8000 | 6000/8000 |

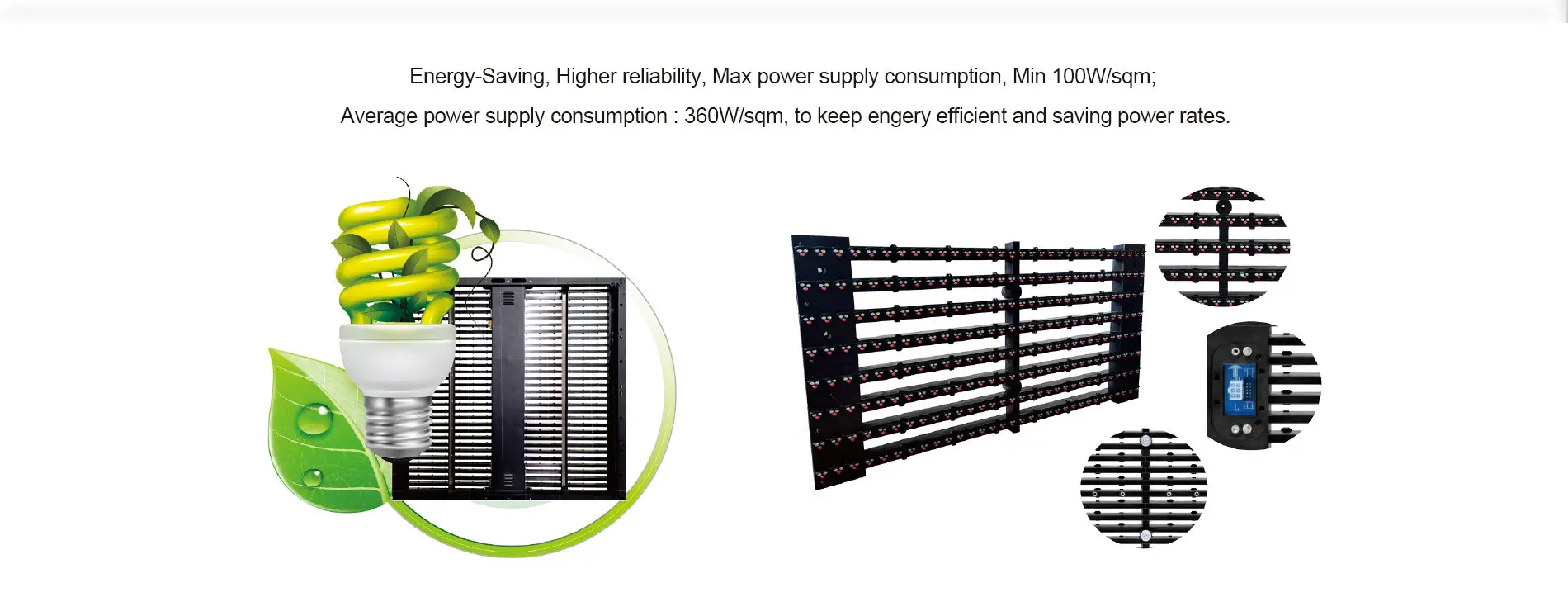

| Maximum power consumption | 700W/sqm | 700W/sqm | 700W/sqm | 700W/sqm | 700W/sqm |
| Average power consumption | 200W/sqm | 200W/sqm | 200W/sqm | 200W/sqm | 200W/sqm |
| Frame change frequency (Hz) | 50&60 | ||||
| Gray Level (bit) | 14-16bit | ||||
| Cabinet material | Aluminum | ||||

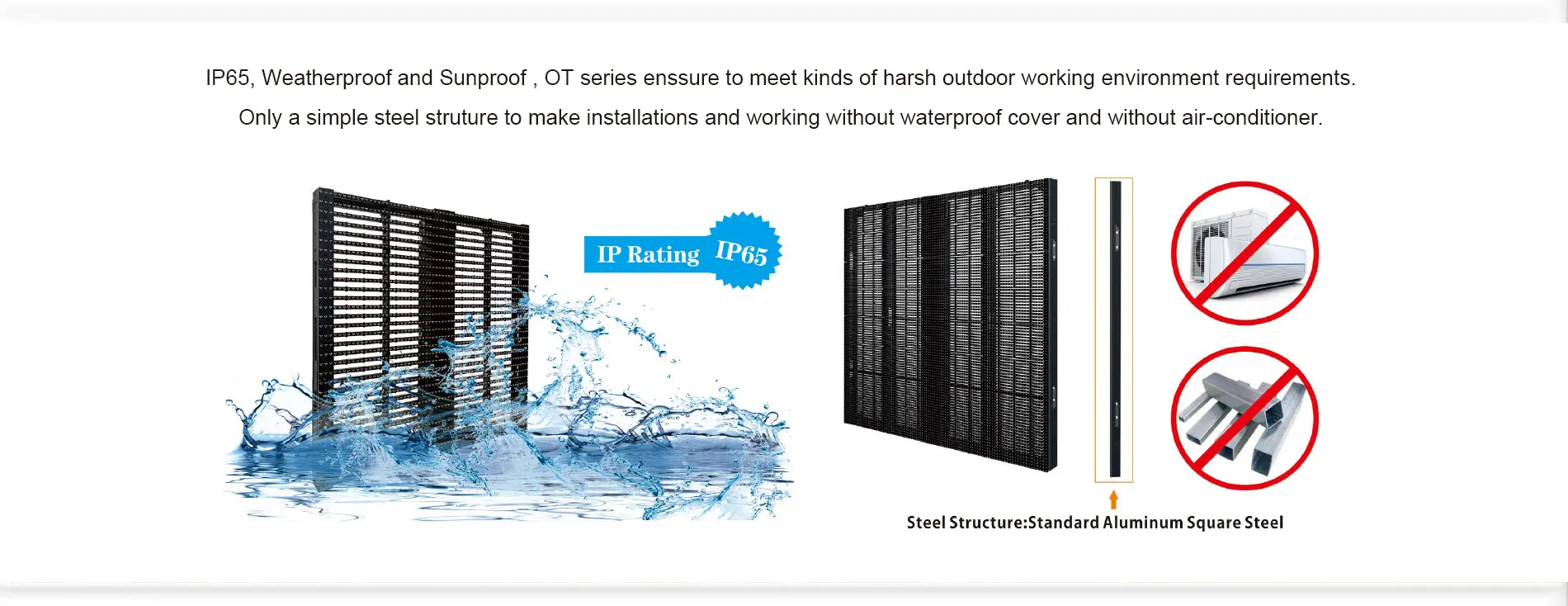

| Protection class | IP65 | ||||
| Installation/maintenance | Back/ Front Access Maintenance | ||||
| Life Span | 100,000 hours | ||||
| Product Technical Specification | OT Series 1010 | OT Series 1212 | OT Series 1515 | OT Series 1531 | |
| Product Pixel Pitch | P10-10mm( H*V) | P12.5-12.5mm( H*V) | P15.6-15.6 mm (H*V) | P15.6-31.25mm(H*V) | |
| LED Configuration | SMD2727 | SMD3535 | SMD3535 | DIP346 | |
| Modules size (mm) | 500*125 | 500*125 | 500*250 | 500*250 | |
| Modules resolution | 48*12 | 40*10 | 32*16 | 32*8 | |
| Cabinet size | 1000*1000*75mm | 1000*1000*75mm | 1000*1000*75mm | 1000*1000*75mm | |
| Pixel density (dots/m2) | 9,216 | 6,400 | 4,096 | 2,048 | |
| Cabinet weight (KG) | 19 | 19 | 19 | 19 | |
| Transparency rate | 42% | 35% | 60% | 50% | |
| Refresh Rate (Hz) | 3840 | 3840 | 3840 | 3840 | |
| Brightness (nits ) | 5500 | 6000/8000 | 6000/8000 | 6000/8000 | |
| Maximum power consumption | 700W/sqm | 700W/sqm | 700W/sqm | 700W/sqm | |
| Average power consumption | 266W/sqm | 266W/sqm | 266W/sqm | 266W/sqm | |
| Frame change frequency (Hz) | 50&60 | ||||
| Gray Level (bit) | 14-16bit | ||||
| Cabinet material | Aluminum | ||||
| Protection class | IP65 | ||||
| Installation/maintenance | Back/ Front Access Maintenance | ||||
| Life Span | 100,000 hours | ||||
